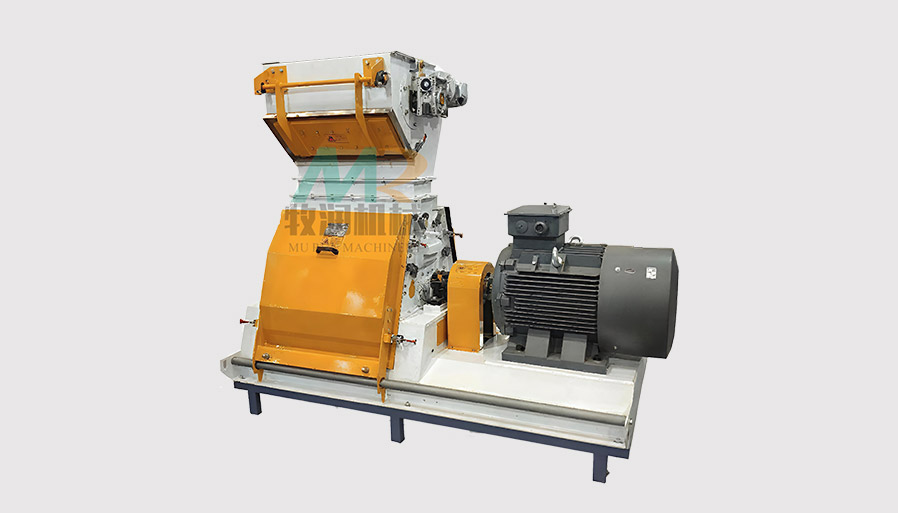

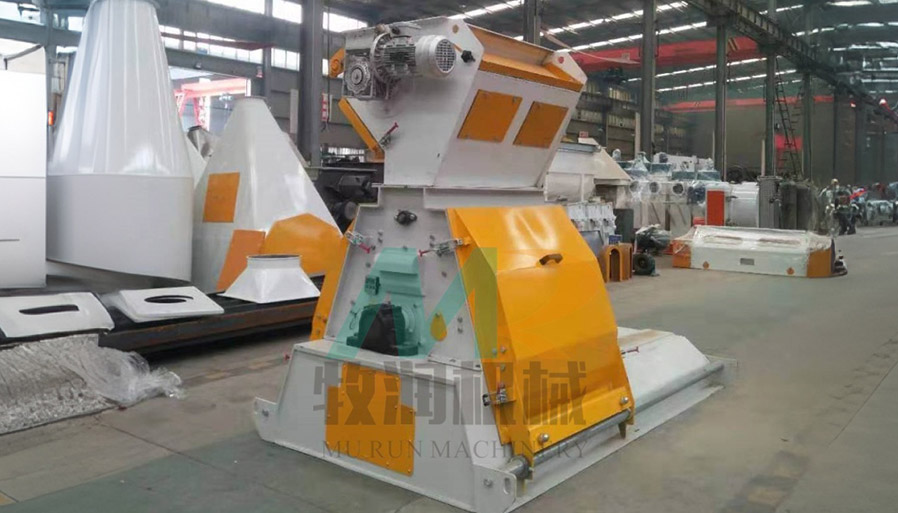

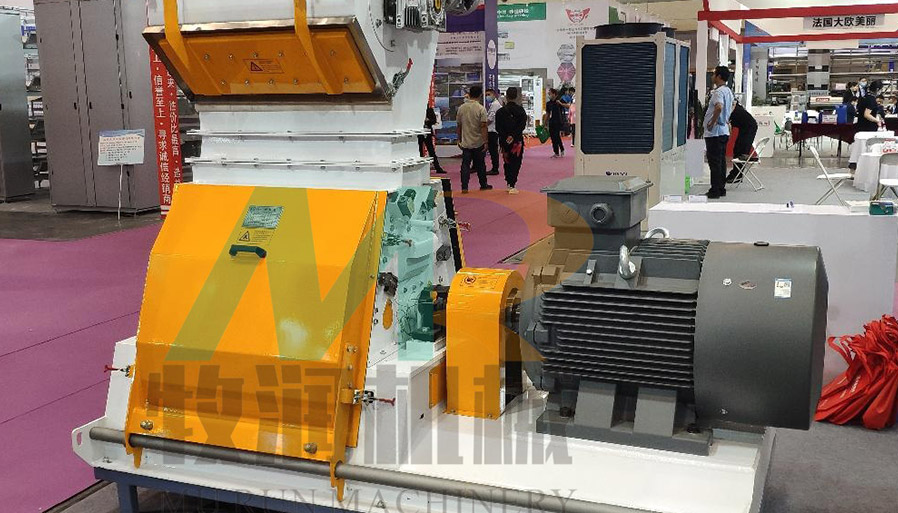

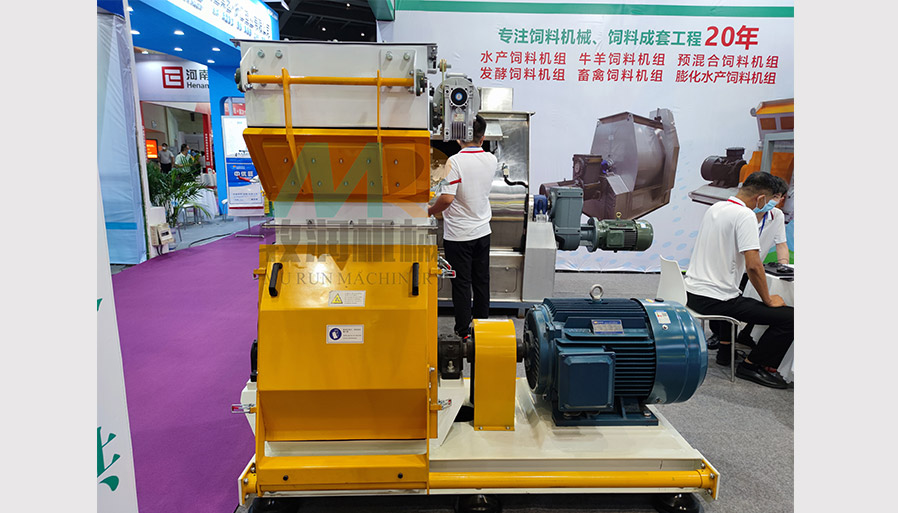

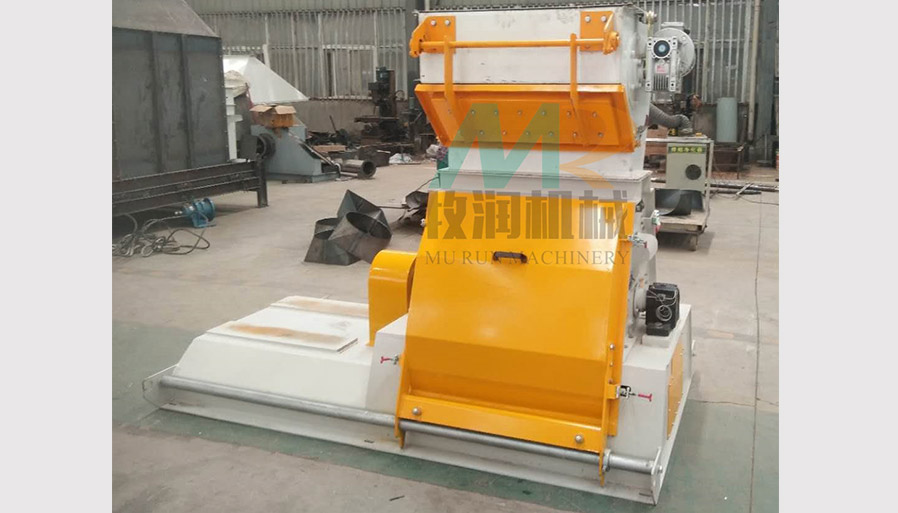

The SFSP series hammer mill is a high-efficiency grinding machine designed for feed mills. It is widely used in poultry, livestock, and aquatic feed production. Utilizing an advanced hammer-type crushing mechanism, it can efficiently process corn, soybean meal, wheat bran, rice husk, and other raw materials. With uniform particle size, low energy consumption, and stable operation, it is an essential grinding machine for modern feed plants.
High-speed rotor ensures high capacity
Adjustable screen apertures for consistent fineness
Optimized rotor and hammer arrangement reduce energy use
High-strength alloy hammers and screens for long service life
Dynamic balance tested, low vibration and noise
Quick-change structure for hammers and screens
Capable of grinding grains, soybean meal, by-products, and more
Raw materials enter the grinding chamber through the inlet. Under the impact of high-speed rotating hammers and interaction with the tooth plate and screen, the materials are crushed to the required size and discharged through the screen. The particle size can be controlled by changing screens with different apertures.
| Model | Power (kW) | Capacity (T/H) |
| SFSP56×36 | 22 | 1–5 |
| SFSP56×40 | 37 | 2–8 |
| SFSP60×60 | 55/75 | 4–12 |
| SFSP66×80 | 90/110 | 15–25 |
| SFSP66×100 | 132–160 | 20–30 |
Widely used in:
Poultry feed: chicken, duck, goose
Livestock feed: pig, cattle, sheep
Aquatic feed: fish, shrimp, crab
Premix and additive processing
The SFSP series hammer mill is widely used in poultry feed (chicken, duck, goose), livestock feed (pig, cattle, sheep), aquatic feed (fish, shrimp, crab), as well as premix and additive processing. With its high efficiency and stable performance, it is ideal for daily production in small and medium feed mills, while also meeting the high-capacity, low-energy requirements of large-scale feed enterprises.
Installation & Commissioning: On-site guidance by engineers
Training: Operators and maintenance staff training included
Warranty: 12 months for core parts, long-term spare parts supply
Technical Support: 24/7 online remote service (WhatsApp/WeChat/Email)
In June 2025, we successfully delivered a cattle feed production line in Lagos, Nigeria.
In July 2025, we successfully delivered a cattle feed pellet production line in Nairobi, Kenya.
In February 2025, we successfully delivered an aquatic feed pellet production line in Surabaya, Indonesia.
