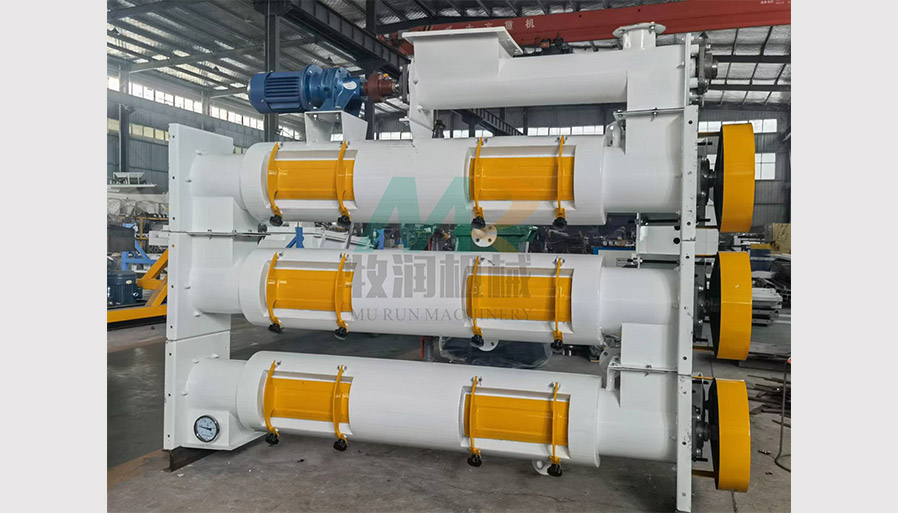

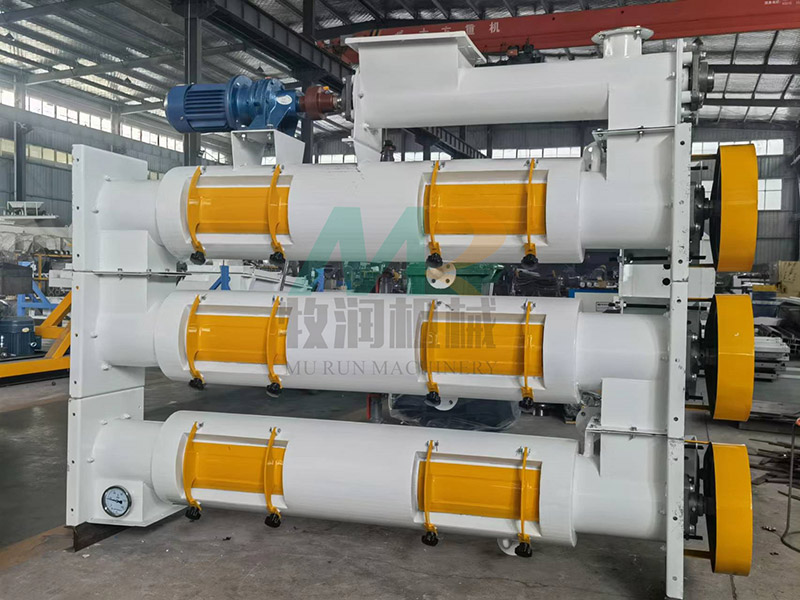

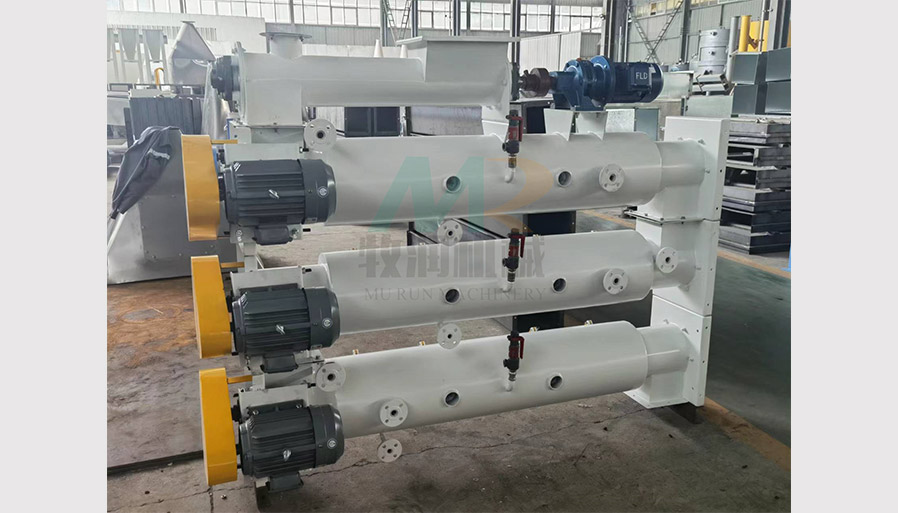

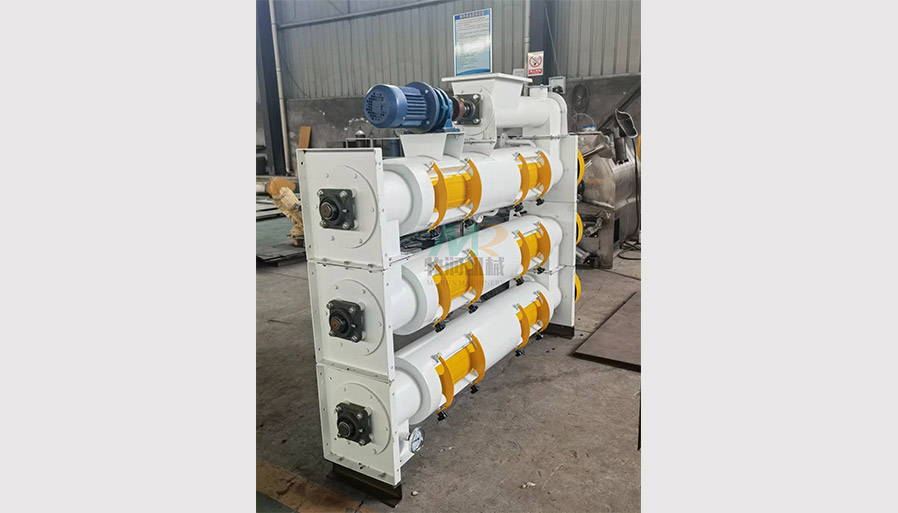

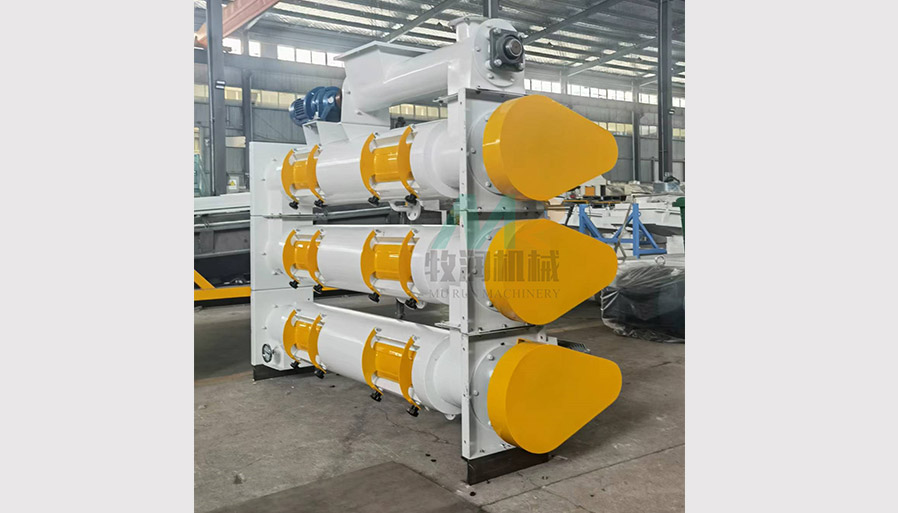

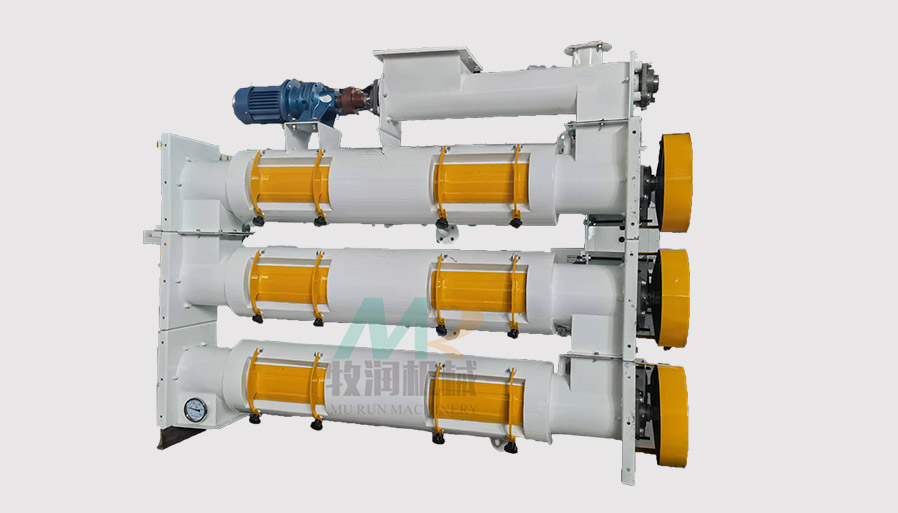

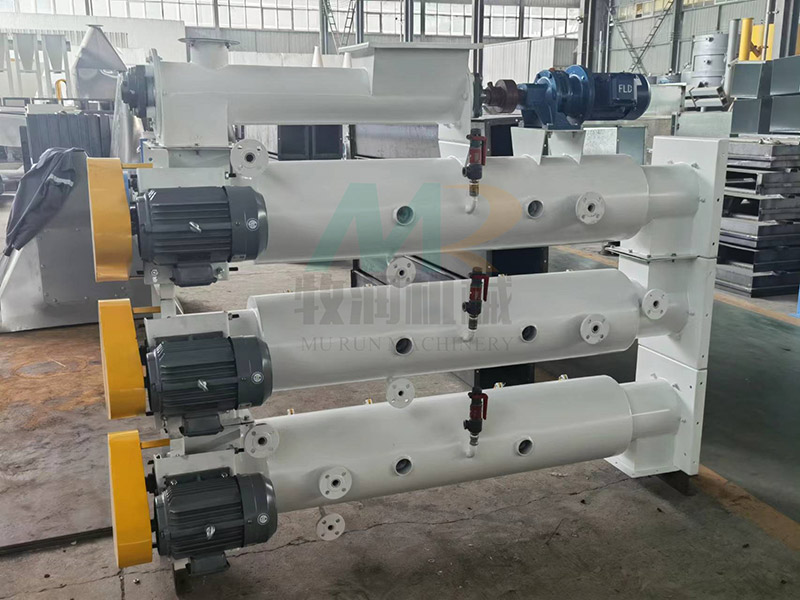

The feed pellet conditioner is a vital device in the pelleting process, primarily using steam to condition raw materials before entering the pellet mill. By ensuring full contact between steam and feed powder, it significantly improves feed cooking quality, palatability, and nutrient digestibility, while enhancing pellet hardness and water stability. Single, double, or triple-layer conditioners are available to meet various production requirements for poultry, livestock, and aquatic feed.
Steam fully contacts the material and, combined with paddle mixing, delivers uniform heating to significantly improve cooking level and nutrient utilization.
Available in single-, double- and triple-layer configurations, selectable according to capacity and process requirements.
Optimized paddle design ensures even heat distribution, preventing localized overcooking or undercooking.
High steam utilization reduces energy consumption and emissions, meeting environmental production standards.
Main body and contact surfaces are made of 304 stainless steel—corrosion-resistant, easy to clean, and long-lasting.
Enhances pellet density and hardness, increases water stability, and reduces fines and transport losses.
Before reaching the pellet mill, raw materials pass through the conditioner, where steam is injected and thoroughly mixed with the feed. As paddles continuously stir the material, heat is evenly distributed, leading to gradual cooking. During this process, proteins denature, starches gelatinize, and fibers soften, resulting in higher pellet durability, better formation rate, and improved feed palatability.
| Model | Capacity (t/h) | Power (kW) |
| KDBZ60 | 8-12 | 3 |
| KDBZ80 | 10-15 | 4 |
| KDBZ100 | 15-20 | 5.5 |
Actual capacity may vary depending on raw material formulation, steam pressure, and conditioning time.
Widely used in poultry feed (chicken, duck, goose), livestock feed (pig, cattle, sheep), and aquatic feed (fish, shrimp, crab), especially suitable for aquatic and ruminant feeds that require high cooking quality and water stability.
Installation & Commissioning: On-site engineer support for smooth production startup
Training: Complete training for operators and maintenance staff
Warranty: 12-month warranty for core parts, long-term spare parts supply
Remote Support: 24/7 technical support via WhatsApp / WeChat / Email
